Used 2010 Coachmen RV Catalina 30BHS

Travel Trailer

Stock #Z1989

Mulkeytown, IL

Check This Out!!!!!!!!!!

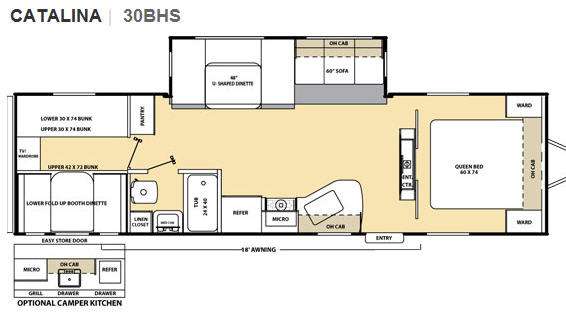

Floorplan - 2010 Coachmen RV Catalina 30BHS

1 of 42

+42

Our Price: $12,300

Sleeps 10
1 Slides
Bunkhouse

Front Bedroom

34ft Long
6,512 lbs

See All Specs

Specifications

Sleeps	10	Slides	1
Length	34 ft	Ext Width	8 ft
Ext Height	11 ft 1 in	Int Height	6 ft 9 in
Hitch Weight	810 lbs	GVWR	9500 lbs
Dry Weight	6512 lbs	Cargo Capacity	2988 lbs
Fresh Water Capacity	46 gals	Grey Water Capacity	40 gals
Black Water Capacity	40 gals	Tire Size	15"
Furnace BTU	30000 btu	VIN	5ZT2CAVB0AA009100

Features

Standard Features (2010)

Exterior / Construction

Cambered Structural Steel I-Beam Frame (With full width out riggers)
3/8” Fully Decked Roof
2” X 3” Longitudinal Floor Joists On Approximately 12” Centers
Residential In-Floor Ducted Heat (N/A 20RD & 21BH)
81” Living Room Ceiling Height
One-Piece, Seamless, Rubber Roof Material with 12 Year Warranty
Easy-Trac Electric Slide Out (All Slide Out Models)
Wall Studs On 16” Centers
1/2” Plywood Dinette, Bed And Bunk Platforms
Roof Rafters, Constructed Of Residential-Style Tapered 5” Trusses
5/8” Tongue & Groove Plywood Floor Decking
R-7 Fiberglass Insulation In Sidewall, Roof & Floor
.024” Aluminum Exterior Skin with .030 skirt metal
Dark Tinted (G55) Black Framed Windows W/Safety Glass
Radius Entry Steps
SUPERLUBE™ Easy Maintenance Axles
15” Radial Tires (14” Radial Tires -20RD & 21BH)
Silver E-Coat Wheels (N/A 20RD & 21BH)
Painted Bumper W/Drain Hose Carrier And End Caps
Radius-Cornered Fiberglass Entrance Door
Painted Bottom Radius Skirting
Amber Patio Light W/Inside Switch
Baggage Doors Are Lockable And Radius-Cornered Grab Handle
Rain Guttering, Molded W/Drip Spouts
Easy-Connect Exterior LP Port - Easy Access for exterior LP Grill or Appliance Hook-Up (All Models)
Polished Aluminum Fender Skirts

Interior and Decor

Jack Knife Convertible Sofa
Residential Furniture
Crank-Up Digital TV Antenna With Signal Booster
Cable Hook-Up With RG6 Coax Cabling
Easy-Spin Entertainment Center w/TV Hook-up & 2 BR Speakers (27BHS, 30BHS & 32BHDS)
Marine Grade Table Leg And Pedestal Base
Valance & Lambricans Window Treatment (Living Room)
Brazilian Cherry Cabinets W/ Black Accent Trim
Large 45” Dinette Tabletop (slide-outs only)

Galley

Mixing High-Rise Faucet
Single Piece Countertop With Seamless Edge
Acrylic Residential-Style Sink with 60/40 Double Bowl
3-Burner Range W/ 9,000 BTU Superburner™ (N/A 20RD & 21BH)
6500 BTU 2 Burner Range (20RD & 21BH)
Range Hood W/Light And Exhaust Fan
Access Doors To The Dinette Booth (All Models)
Glued & Screwed Cabinet Construction
Easy-View Extra Large Picture Window At Dinette
Large Pedestal Dinette Table
Large U-Dinette – 30BHS, 32BHDS
Silverware Drawer (20RD & 21BH)
Single Door Dometic™ Gas/Electric Refrigerator

Bedroom

Premium Evergreen Sleep System
Under-Bed Storage, Bed Lifts Easily On Gas Struts
Deluxe Window Treatments
Quilted Residential Comforter, Pillow Shams, and Headboard (All Models)
2 Shirt Wardrobes, 1 Nightstand, 1 Drawer

Electrical / Heating / Water / A/C

Roto-Cast Holding Tanks
30K BTU Auto-Ignition Furnace With Wall Thermostat (Except 20RD & 21BH)
20K BTU Auto-Ignition Furnace With Wall Thermostat (20RD & 21BH)
110v G.F.C.I. Protected Exterior Receptacle
30-Amp Power Cord
6-Gal. Gas Water Heater
12v Electrical System W/Deluxe 110v 45-Amp Power Converter
12v Demand Water Pump
Systems Monitor Panel
Hook-Up For City Water
Double 20-Lb. Propane Gas Bottles W/ Regulator

Bath

Shower Curtain With Curved Shower Track,
Neo-Angle Shower with Glass Doors on 29RLS, 29RKS
Towel Ring (2) & Toilet Paper Holder
Marine Toilet With Foot Flush
Large Sink In Bathroom

Safety

Propane Alarm
Breakaway Switch
G55 Rated Safety Glass Windows
Dead-Bolt Lock On Entrance Door
Dual Hitch Safety Chains
Smoke Alarm
Multiple Egress Windows
Fire Extinguisher
Carbon Monoxide Alarm

Packages

Customer Value Package (Mandatory Option)
13.5K BTU Ducted A/C (Non-Ducted on 20RD & 21BH)
Heated-Enclosed Underbelly (N/A 20RD & 21BH)
Microwave Oven
Dometic™ Double Door Gas/Electric Refrigerator
Multi-Media Premium Sound System AM/FM/CD Player, Antenna and iPod® Input Jack
Cable Interior/Exterior Hook-Ups
A&E™ Patio Awing
EvenCool™ Ducted Central AC with Wall Thermostat & Louvered-Directional Ceiling Vents (N/A 20RD & 21BH)
Water Heater By-Pass Winterization Kit
Plus Package (n/a 20RD & 21BH)
30lb Propane Gas Bottles (2) W/ABS Cover
Outside Shower
Raised Panel Kitchen Overhead Doors
6-Gal. Electronic Ignition (DSI) Gas or Electric Water Heater
Comfort Package (n/a 20RD & 21BH)
ABS Shower Surround
Gas Oven
Sink Cover (Not a cutting board)

Options

Camper Kitchen 30BHS & 32BHDS
Free Standing Dinette 29RKS & 29RLS
Front Diamond Plate
Spare Tire And Tire Carrier W/Vinyl Tire Cover
CSA Standards
Coa-Cube Futon Bed IPO Lower Bunk (32BHDS Only)
Hide-A-Bed Sofa (29RLS, 29RKS, 30BHS, 32BHDS)
Outside Marine Grade Speakers
Full Wall W/Pocket Door and Wall Mirror (22FB & 26BH Only)
Customer Value Package W/15,000 BTU AC

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
